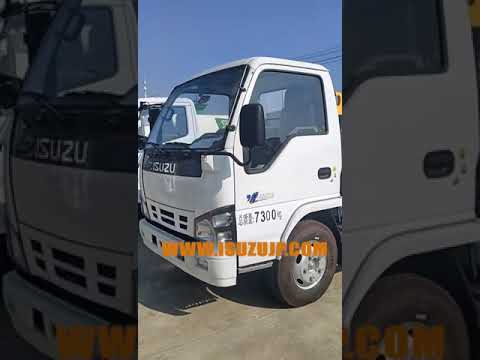

Operation steps of Japan Isuzu Nkr 5cbm small hook loader truck:
1. Steps for placing the garbage truck box
① After starting the car, hook up the power take-off, push down the locking hook operating handle to the retracted position, and retract the locking cylinder to turn the locking frame down. The turning frame and the trash can are separated, locked and fixed, and connected to the attached car. The frame is locked and fixed, and the handle is loosened to return it to the neutral position;
②Pull the handle of the pull arm to the extended position, the cylinder of the pull arm is extended, the movable pull arm rotates around the hinge axis of the front hinge of the flip frame, and the trash can flips and falls with the movable pull arm; when the trash can is placed, It is strictly forbidden to stand at the rear of the carriage.
③After the pull-arm type garbage truck box is placed, adjust the position of the movable pull arm hook and the hook hook of the box body to make it unhook, push the pull arm operating handle down to the drop position, retract the pull arm cylinder, and move the pull arm around the flip frame before The hinge shaft rotates, the movable pull arm is put back on the attached frame, and the power take-off trash can is released and placed, and the whole vehicle can be transported.
2. Steps to pull up the garbage box body of the garbage truck
① Push the locking hook operating handle to the retracted position, retract the locking cylinder, retract the locking frame, and lock and fix the turning frame and the attached frame;
② Pull the handle of the pull arm to the extended position, the cylinder of the pull arm is extended, the movable pull arm rotates around the front hinge axis of the flip frame, the pull arm is in the position of the hook box, adjust the height of the pull arm hook appropriately and hook with the box body alignment;
③When the pull arm hook is hooked to the box hook, continue to push the pull arm operating handle to the down position to make the trash box continue to get on the truck;
④When the garbage truck box is dropped on the attached frame, loosen the handle of the pull arm to return it to the neutral position, and then pull the handle of the locking hook to the locked position, and the locking cylinder extends to make the lock Turn over the tightening frame and lock the turning frame with the trash can, and loosen the handle to return it to the neutral position; complete the loading work of the trash truck, loosen the power take-off, and the whole vehicle can be transported.
Japan Isuzu Nkr 5cbm small hook loader truck Specification：
https://www.isuzujp.com/product/isuzu-nkr-6m3-hook-bin-truck/
